1957 upper down draft tube installation photos

twstnshout

twstnshout

Reaction score
4
Thunderbird Year
1957
Looking for an image of a correctly located and lnstalled upper draft tube for a 1957 312 3 speed OD

This page contains affiliate links for which I may be compensated. As an eBay Partner, and Amazon Associate I may be compensated if you make a purchase at no cost to you.

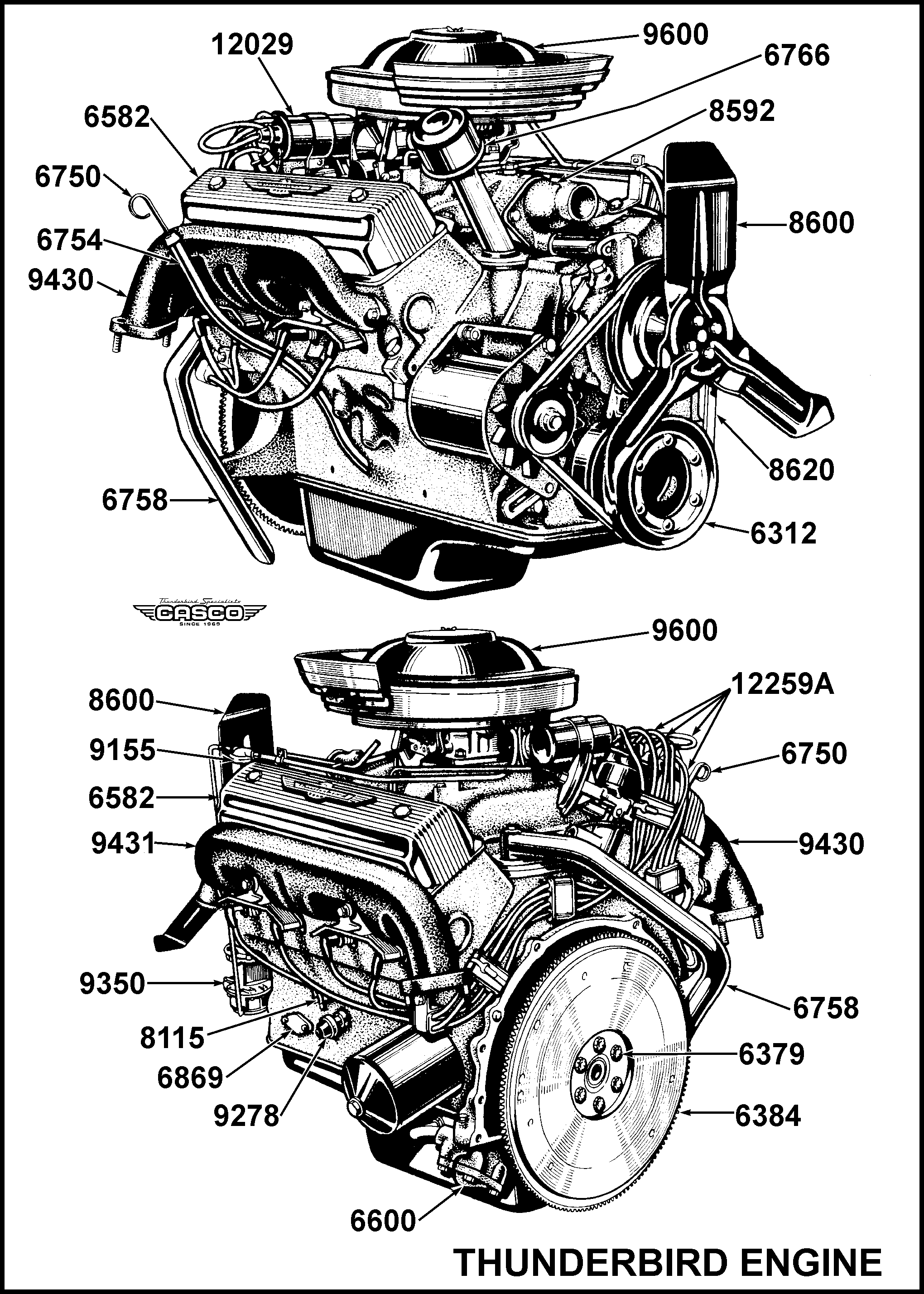

Not sure if this could help:

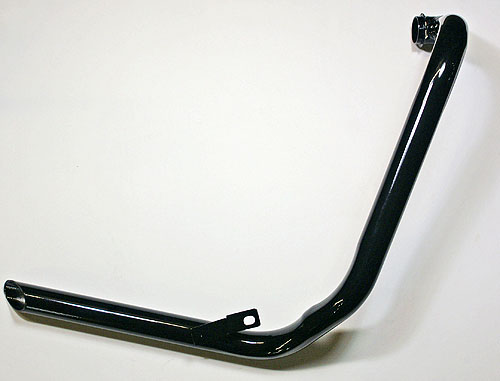

The downdraft tube braket hooks to the starter bolt.



Looking for an image of a correctly located and lnstalled upper draft tube for a 1957 312 3 speed OD
Here are a couple of pictures from 2 different Thunderbird engines that I was overhauling. The picture with the black down draft tube is from a 3 speed OD transmission.

doug7740
1955 Thunderbird Blue100_6499.jpg104_7837.jpg
