'66 CVR (constant voltage regulator) replacement

[Southernboy]

I noticed the temp and fuel gauges on my '66 were reading erratically and decided the CVR must be the culprit. As many people have suggested, I pulled down the clock panel for access and replaced the unit. Now none of the instruments work. Is there a trick to this? it appeared to be a straightforward 2 wire unplug/replug replacement. I tried 2 CVRs thinking I must have gotten a dud the first time.

This page contains affiliate links for which I may be compensated. As an eBay Partner, and Amazon Associate I may be compensated if you make a purchase at no cost to you.



[tbirdjims]

I noticed the temp and fuel gauges on my '66 were reading erratically and decided the CVR must be the culprit. As many people have suggested, I pulled down the clock panel for access and replaced the unit. Now none of the instruments work. Is there a trick to this? it appeared to be a straightforward 2 wire unplug/replug replacement. I tried 2 CVRs thinking I must have gotten a dud the first time.

The CVR must have a good ground.



[Southernboy]

I thought that I had it properly grounded, but it makes sense that it may not be. Will go back into it tomorrow and try again. Thanks!



[Doug Morris]

I read there is a person that has a reliable replacement CVR unit, is there someone on the FTForm that has a link to this source or another source of CVR units that are quality and will last. Thanks



[Frankie the Fink]

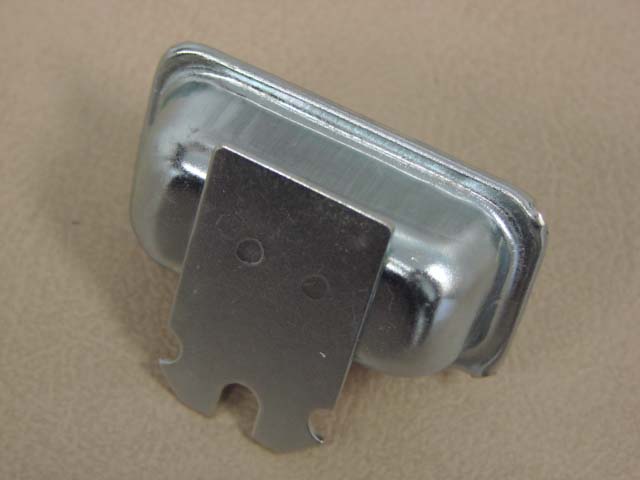

B 10804C Instrument Voltage Regulator 60/66 For 1960-1961-1962-1963-1964-1965-1966 Ford Thunderbird (B10804C) - Larry's Thunderbird & Mustang Parts

For 1960-1961-1962-1963-1964-1965-1966 Ford Thunderbird

www.larrystbird.com
