1977 windshield wiper/wash switch diamantled and in need of a replacement

[RamCR]

I was in a bad storm and activated my wiperblades, something went wrong they got stuck and in an attempt to turn them off something popped in the back of the dash and upon inspection the switch broke into 4 pieces the wire harness 2 internal components of the switch and the metal casing with the knob on the dash, not to mention the bar and springs that went flying with them. Not having any luck finding a replacement

This page contains affiliate links for which I may be compensated. As an eBay Partner, and Amazon Associate I may be compensated if you make a purchase at no cost to you.



[RamCR]

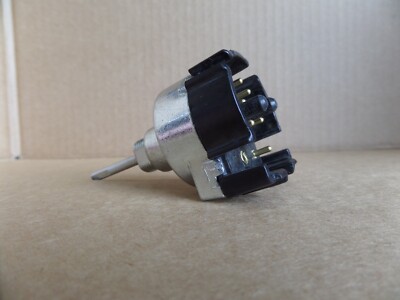

This is what the back of the switch looks like. Ive only been able to find one for a 1970s dump truck that looks similar but very unsure as follows:

F3HZ-17A553-A W/WIPER SWITCH 1970-1997 L SERIES DUMP TRUCK W/ELECTRIC WIPERS | eBay

Find many great new & used options and get the best deals for F3HZ-17A553-A W/WIPER SWITCH 1970-1997 L SERIES DUMP TRUCK W/ELECTRIC WIPERS at the best online prices at eBay! Free shipping for many products!

www.ebay.com



[74 Harley]

You don't show the connection pins of your switch. There's two basic styles, round pins like you show and flat pins. The next question is do you have intermittent wipers?



[RamCR]

You don't show the connection pins of your switch. There's two basic styles, round pins like you show and flat pins. The next question is do you have intermittent wipers?

Hi, my apologies I didn't originally put in a picture to show that part but I did reply to the thread itself afterwards with a picture showing the pin configuration in this case. And they are intermittent.



[74 Harley]

No worries! I'll be out in the shop all day, I will see if I still have any of those left.

You may have just got lucky! Send me a direct message...
